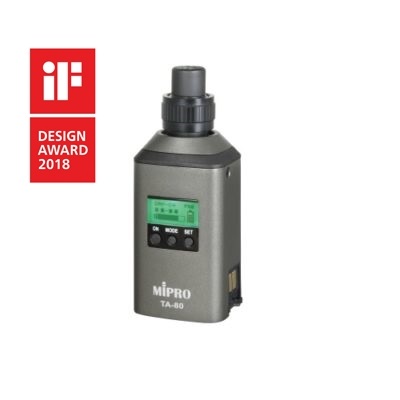

MiPRO TA 80 Digital Wireless Plug-on Transmitter


Category: Tag:


The MIPRO TA-80 is a digital miniature wireless plug-on transmitter with balanced XLR mic input jack, designed for professional interview applications. It allows condenser or dynamic wired microphones to become wireless and is compatible with ACT-8 series receivers for premium sound quality.

The TA-80 has a compact and ultra-thin rugged aluminum housing construction. The input jack is easy to install and remove, and can be screw-locked with the microphone. It provides phantom power of 12, 48 V switchable levels for condenser microphones with up to 10mA current load. When the transmitter is connected to dynamic microphones, the phantom power can be turned off. A backlit LCD panel shows all operational parameters.

An ICR 18500 rechargeable lithium battery provides a minimum 8 hours of operation and can be recharged over 600 times. Even when set to 48V phantom power, it provides a minimum 5 hours of operation. Simply charge the transmitter in the charger after each use. It’s also easy to remove and replace the battery or charge the battery in the charger.


Housing Aluminum alloy
Frequency Range UHF 470 – 934 MHz
Oscillation Mode PLL Synthesized.
Frequency Stability ≦±0.005% (-10℃ – +60℃)
RF Output Power 10 mW / 50 mW switchable (country dependent)
Spurious Emissions ≦ -60 dBc
Antenna Internal
Modulation Type New digital modulation
Audio Compression DSP Inertial coding
LCD Display Group, Channel, Frequency, AF gain, Low-cut, Limiter, Encryption status, RF power, Phase, Lock status, Mute mode, Battery status & Error codes
Gain Setting +30 dB, +24 dB, +18 dB, +12 dB, +6 dB, 0 dB, -6 dB, -12 dB , -18 dB (9 settings). 0 dB = microphone sensitivity
Phantom Power 12 V / 48 V switchable, with phantom power on indicator. 48 V provides up to 10 mA current load. Phantom power is not required for dynamic microphones.
Mic Input Balanced XLR
Battery Type ICR 18500 rechargeable lithium battery
Operating Time Min. 8 hours (Low power, phantom power off)
Current Consumption Approx. 140 mA (Low power, phantom power off)
Dimensions (W × H × D) 44 × 114 × 37 mm / 1.7 × 4.5 × 1.5 “
Net Weight Approx. 165 g / 5.8 oz, excluding battery

Click here to download MIPROTA-80 Digital Wireless Plug-on Transmitter
