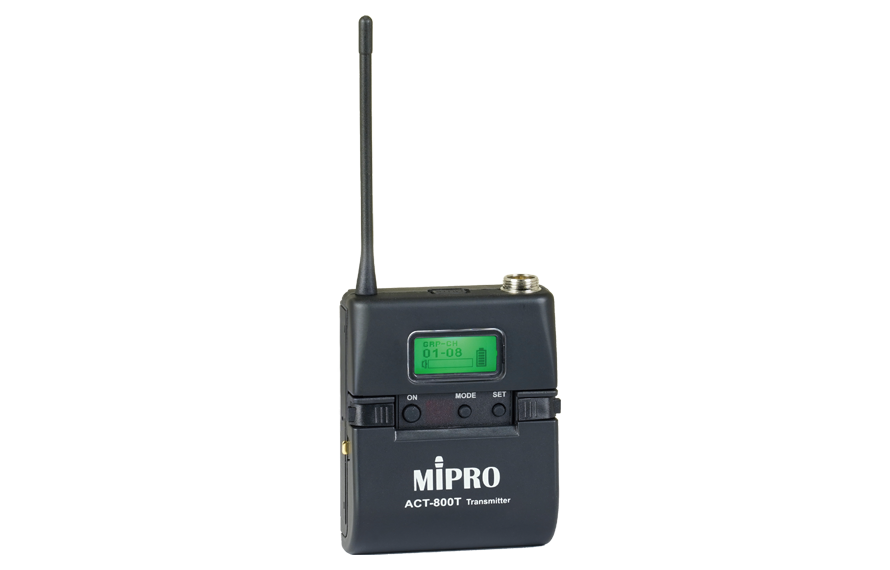

MiPRO ACT-800T UHF Analog Wireless Bodypack Transmitter


Category: Tag:
  • Newly designed compact and lightweight housing for easy wearing.
  • The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information. A lockable power switch prevents the power switch from accidental operation.
  • In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, input polarization, and mute mode are also programmable.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • 6 switchable gain levels and the input polarization can be selected for matching various capsules.
  • Mute button and remote-control jack allow quick setting of MUTE function.
  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
  • A belt clip for easy wearing.
Model ACT-800T
Name UHF Digital Wideband Bodypack Transmitter
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Display Backlit LCD
Encryption 256-bit
Mic. Capsule Modules Work with all MIPRO’s lavalier and headworn mics
Input Connector MIPRO 4-Pin Mini XLR
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
6 switchable levels: 18 dB, 12 dB, 6 dB, 0 dB, -6 dB, -12 Db
RF Power Output 10 mW / 50 mW switchable (country dependent)
Battery One 18500 Li-ion battery or two AA alkaline
Charging MP-800 slip-in charger or USB Type-C
Dimensions 63 × 80 × 25 mm (W × H × D)
Weight Approx. 97 g
Note Refer to the actual product in the event of product discrepancy
