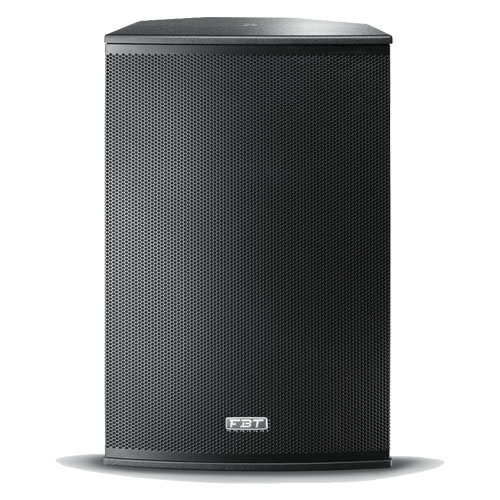

Processed Active Speaker
XPRO 15A 1000W – 128 dB SPL
Specifications:
- 2-way bi-amplified bass reflex
- FBT Custom 380mm (15”) LF woofer with 64mm (2.5”) voice coil
- FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
- 42Hz to 20KHz Frequency Response
- 80° H x 50° V constant directivity rotatable horn
- 35° or 45° monitor taper
Features:
| Code: | 38771 |
| Configuration: | 2 way |
| Built-in amplifier LF/HF: | 800/200 W RMS |
| Frequency response: | 42Hz – 20KHz -6dB |
| Low Frequency woofer: | 15-2.5 coil inch |
| High Frequency driver: | 1 – 1.4 coil inch |
| Maximum SPL cont/peak: | 128 dB |
| Dispersion: | 80°x50° rotatable HxV |
| Input impedance: | 22 Kohm |
| Input connector: | XLR with loop, JAck ST, RCA ST |
| Power cord: | 5 / 16.4 m/ft |
| Net Dimension (WxHxD): | 440x735x440 / 17.32×28.93×17.32 mm/inch |
| Net Weight: | 22 / 48.5 Kg/lb |
| Transport Dimension (WxHxD): | 500x795x500 / 19.68×31.29×19.68 mm/inch |
| Transport Weight: | 25/55.11 Kg/lb |
Click here to download FBT X Series (XLITE, XPRO & XSUB) Speakers
Processed Active Speaker
XPRO 12A
- 2-way bi-amplified bass reflex
- FBT Custom 12” LF woofer with2.5” voice coil
- FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
- 42Hz to 20KHz Frequency Response
- 80° H x 50° V constant directivity rotatable horn
- 35° monitor taper
Specifications:
| Code: | 38771 |
| Configuration: | 2 way |
| Built-in amplifier LF/HF: | 800/200 W RMS |
| Frequency response: | 50Hz – 20KHz -6dB |
| Low Frequency woofer: | 12-2 coil inch |
| High Frequency driver: | 1 – 1.4 coil inch |
| Maximum SPL cont/peak: | 127 dB |
| Dispersion: | 80°x50° rotatable HxV |
| Input impedance: | 22 Kohm |
| Input connector: | XLR with loop, JAck ST, RCA ST |
| Power cord: | 5 / 16.4 m/ft |
| Net Dimension (WxHxD): | 370x640x370 / 14.56×25.19×14.56 mm/inch |
| Net Weight: | 18 / 39.68 Kg/lb |
| Transport Dimension (WxHxD): | 430x700x430 / 16.92×27.55×16.92 mm/inch |
| Transport Weight: | 20.8/45.85 Kg/lb |
Click here to download FBT X Series (XLITE, XPRO & XSUB) Speakers
Processed Active Speaker
XPRO 10A 1000W – 126 dB SPL
Features:
- 2-way bi-amplified bass reflex
- FBT Custom 10” LF woofer with 2” voice coil
- FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
- 58Hz to 20KHz Frequency Response
- 80° H x 50° V constant directivity rotatable horn
- 35° monitor taper
Specifications:
| Configuration: | 2 way |
| Built-in amplifier LF/HF: | 800/200 W RMS |
| Frequency response: | 58Hz – 20KHz -6dB |
| Low Frequency woofer: | 10 – 2 coil inch |
| High Frequency driver: | 1 – 1.4 coil inch |
| Maximum SPL cont/peak: | 126 dB |
| Dispersion: | 80°x50° rotatable HxV |
| Input impedance: | 22 Kohm |
| Input connector: | XLR with loop, Jack ST, RCA ST |
| Power cord: | 5 / 16.4 m/ft |
| Net Dimension (WxHxD): | 315x550x315 / 12.4×21.65×12.4 mm/inch |
| Net Weight: | 13.5/29.76 Kg/lb |
| Transport Dimension (WxHxD): | 375x610x375 / 14.76×24.01×14.76 mm/inch |
| Transport Weight: | 15.5 / 34.17 Kg/lb |
Click here to download FBT XPRO & X-SUB Brochure & Specifications
