Zidoo NEO S Hi-End 4K Media Player


Category: Tag:


NEO S is a new product which is all-round, high-performance and cost-effective
Provide excellent audio and video quality to users
NEO S is an all-in-one device with functions like HiFi music digital decoding,streaming playback, headphone amplifier functions and movie playback
NEO S inherits NEO X’s craftsmanship with aluminum thickened chassis and 5-inch OLED
Built in with SSD, dual ES9068 DAC, dual digital/analog power supply modules and toroidal power supply

Product Design

Wonderful craftsmanship

Solid chassis with aluminum alloy CNC structure

Large OLED screen

5-inch OLED HD display with touch screen

Anti-vibration design

Resonance suppressing stiffener structure

Shock-absorbing foot pads

Technological aesthetics

Beautiful modular professional circuit design

Unique shielding treatment

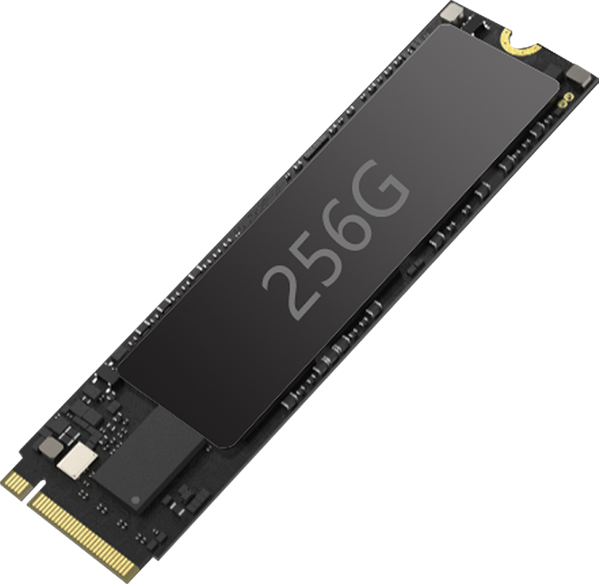

High Speed SSD

NEO S is equipped with a 256G high speed SSD for local music playback. High-quality music files can be easily stored, data reading is stable and fast. Heating and noise problem of traditional mechanical hard disk can be avoided

OLED Touch Screen

The 5-inch OLED high-definition colorful touch screen is beautiful embedded full-screen design. Practical operations can be done with the collaboration of knobs, such as audio source switching, volume adjustment, system setting and playback status display

Fever grade dual ES9068 DAC

NEO S firstly uses two ES9068 DAC as the core of audio decoding. Two-channel audio is decoded independently to avoid interference and get better SNR and dynamic range. Supporting up to DSD512, PCM768@32bit and three-layer 8 times expanded MQA encoding format hardware decoding

Dual Discrete Power Supplies

Separate digital and analog power supplies to eliminate interference which significantly improves the sound purity

Linear power supply designed for analog audio circuits which is composed of multi-winding large toroidal transformers

Switching power supply with lower ripple and magnetic leakage interference

Multiple digital inputs

Multiple ports including USB DAC, Optical, Coaxial and AES/EBU input

Support various devices like turntables and CD players

Perfect sound quality by the dual high-performance DAC

Asynchronous USB DAC

NEO S is just a good solution for PC HiFi enthusiasts

USB DAC input supports asynchronous digital signal processing

Which can be used as a sound card when connected to PC

Also a professional USB DAC for IOS/Android phones or tablets via OTG

High-performance headphone amplifier

Monitor amp module is built in NEO S, 4.4 balance and 6.35 headphone jacks are available. Fully-balanced voltage design and graded amplified current provide high current thrust. Two gain modes correspond to different impedance ranges of headphone. The ultimate sound quality is comparable to desktop headphone amplifier

XMOS and Dual Clock

NEO S is equipped with XMOS chip and supports asynchronous transmission

Support up to DSD512 with native DSD, DXD and 768kHz/ 32bit PCM

Dual high-precision clock oscillators for 44.1KHz and 48KHz multiplier sampling

which effectively suppresses jitter and ensures more accurate audio decoding

Fully Balanced Circuit

NEO S circuit adopts fully balanced design with better noise immunity and low distortion filtering technology. Channel separation is improved and signal is stable by eliminating the common return circuit. Buffering and amplification of multi-level operational amplifiers completely simulate signal processing path and bring natural sound quality

HiFi Components

In order to achieve the monitor-level HiFi sound quality, NEO S adopts good circuit design, immersion gold main board, 6 operational amplifiers and selected HiFi components such as NICHCON, WIMA and ELNA

MQA (Master Quality Authenticated) MQA is an award-winning British technology

that delivers the sound of the original master recording

The master MQA file is fully authenticated and is small enough to stream or download

NEO S adopts MQA technology to receive and decode MQA audio and provide master-level sound

Visit for more information

Master Tape Music Playback

NEO S is a powerful music player supporting CD-quality lossless formats

Like FLAC, WAV, APE, DTS, etc.

Advanced master tape music MQA, DSD512 (SACD ISO/DFF/DSF/DSD)

And various sampling formats seamless playback

Intelligent Music Library

NEO S is good at managing music resource

Music files from network drives and local hard drive can be added conveniently

Matching and generating music library databases automatically

Just enjoy music collection, management and playback in a easy way

Multiple Music Streaming Services

NEO S supports rich network streaming music services like Spotify,Airplay, DLNA

Music in smart phones, computers and tablets can be simply pushed to NEO S

Bluetooth APTX HD

We can easily enjoy music by connecting NEO S with cell phone via Bluetooth. Qualcomm flagship CSR8675 module supports APTX and LDAC lossless audio compression technology, which can overcome bandwidth barriers in standard technology. Even if audio is transmitted via Bluetooth, CD-level sound quality can be achieved

CD Ripping and Playback

NEO S supports CD ripping and playback when connecting with CD-ROM via USB port
Names of albums/songs can be smartly matched by the ID of CD via special HASH
Ripped files can be collected and managed in ZIDOO Music Player

4K UHD Image Quality

NEO S adopts RTD1619 DR hexa-core 64-bit A55 processor. In addition to efficient and stable system, it has also equipped with 4K UHD decoding and processing technology. BD UHD Blu-ray disc and self-made media files are supported, and up to 3840 x 2160 60Hz, HDR and BT.2020 wide range

HDR Technology

NEO S not only supports ordinary high dynamic range HDR10 and HLG, but also advanced technology HDR10+ and Dolby Vision. Dolby Vision metadata processing technology can provide 4000nit peak brightness and 12Bit (around 68 billion) output. Stunning brightness, contrast and natural colors bring excellent image quality

Wide Color Range

NEO S can output up to 4K 60P
Automatic resolution switching and precise frame rate (23.976) output
RGB, YVU4:4:4, 4:2:2 and 4:2:0 and other color range are supported

Network Protocols

Multiple network protocols NFS, SMB v1/v2/v3 and UPnP work well. Files in NAS or network drives can be accessed effectively and stably via gigabit LAN. Meanwhile, SMB sharing is supported to share files from local hard disk to other devices

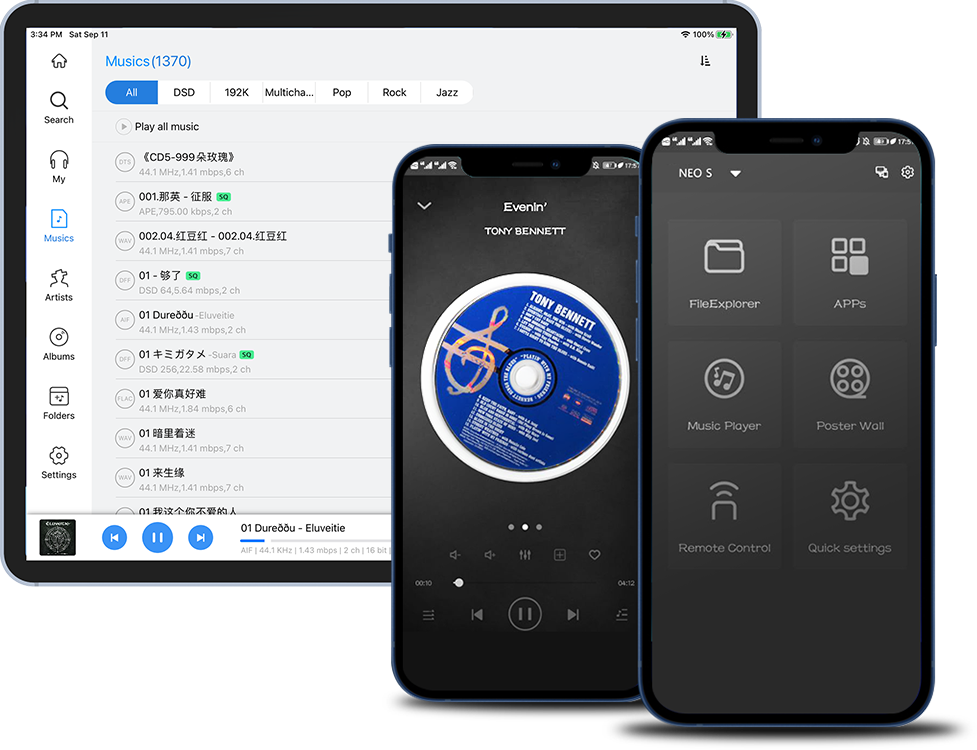

Mobile Controller App

NEO S can be controlled by mobile phone and tablet APP. Besides, mobile phone APP can display Poster Wall, Music Player and system setting. Program search and system setting can be done in the background without affecting movie playback

Model    NEO S
Display    5-inch OLED HD touch screen
Chassis    Aviation aluminum alloy
CPU    Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU    ARM Mali-G51 MP3
Internal SSD    256G SSD (M.2 SATA 3.0 2280, up to 1TB)
Audio DAC    ESS 9068*2
Wi-Fi    2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet    RJ-45(10/100/1000Mbps)
HDMI Output    2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output)
Support audio passthrough
Video Decoding    4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
Audio Decoding    Support true-hd HD audio passthrough, stereo PCM decoding
Built-in DAC audio decoding: support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Bluetooth Audio Input    CSR8675 flagship Bluetooth audio module(BT5.0)
Support lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB Audio Input    USB audio compatible system: Windows(7,10), Mac, Android
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Digital Audio Input    USB DAC IN, AES/EBU input, Coaxial input, Optical input
Digital Audio Output    Coaxial output, HDMI output, USB Audio output, Bluetooth output
Analog Audio Output    Preamp output: XLR(balanced), RCA
Headphone amplifier output: 4.4mm balanced, 6.3mm single-ended
Headphone Impedance    16-300Ω(low-gain mode: 16-32Ω; high-gain mode: 32-300Ω)
XLR(balanced) Output    Output Level(Vrms): 4.1 Vrms
THD+N: -118dB
Noise: 2uVrms
SNR: 120dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -120dB(1kHz,Fs=44.1kHz)
DNR: 119dB
RCA(single-ended) Output    Output Level(Vrms): 2.16 Vrms
THD+N: -116dB
Noise: 2.5uVrms
SNR: 119dB(20Hz-20kHz)
Frequency Response: ±0.258dB(20Hz-20kHz)
Crosstalk: -130dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Headphone 4.4mm Balanced Output(low-gain mode)    Output Level(Vrms): 2.26Vrms
Output Power/Impedance: 310mW/32Ω
THD+N: -116dB
Noise: 1.7uVrms
SNR: 118dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -128dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Headphone 4.4mm Balanced Output(high-gain mode)    Output Level(Vrms): 4.1Vrms
Output Power/Impedance: 110mW/300Ω
THD+N: -118dB
Noise: 3.5uVrms
SNR: 120dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -130dB(1kHz,Fs=44.1kHz)
DNR: 119dB
Headphone 6.3mm Single-Ended Output(low-gain mode)    Output Level(Vrms): 1.5Vrms
Output Power/Impedance: 138mW/32Ω
THD+N: -114dB
Noise: 3.2uVrms
SNR: 116dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -128dB(1kHz,Fs=44.1kHz)
DNR: 115dB
Headphone 6.3mm Single-Ended Output(high-gain mode)    Output Level(Vrms): 2.7Vrms
Output Power/Impedance: 47mW/300Ω
THD+N: -114dB
Noise: 3.5uVrms
SNR: 118dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -132dB(1kHz,Fs=44.1kHz)
DNR: 118dB
USB Ports    USB3.0*2, USB2.0*2
Control Ports    IR IN, Bluetooth, TCP/IP control(WOL)
Power Supply    AC 110~240V 50/60Hz
Dimensions    213(L)*292(W)*101(H)mm
Packing List    Remote control*1, Power cable*1, Antennas*3, Product manual*1
