Features:
Consists of MI 808T, MI 808R and E 10S.
Adopts UHF-band PLL Synthesized design.
In 24MHz bandwidth, they are pre-programmed with 16 frequencies and can switch with a single button.
Dual-antenna diversity receiving eliminates signal dropouts and enhances receiving stability.
The dynamic expander circuit ensures S/N ration is greater than 90dB.
Stereo/ mono switchable audio output.
Numeric LED channel display with auto power saver.
With both POWER on/off and RF signal indicators.
Adopts two AA-size batteries and high-efficiency power saving circuitry to ensure long operating hours.
Rigid and durable magnesium alloy casing for professional request.
Equips with safe and unbreakable soft antennas.
| Frequency Range | UHF 620 – 874MHz | ||
| Bandwidth | 24 MHz | ||
| Oscillation Mode | PLL Synthesized | ||
| Channel Grid | 25 kHz | ||
| T.H.D. | <1% (at 1kHz, Max. deviation) | ||
| Frequency Response | 80 Hz – 15 kHz | ||
| Modulation Type | FM stereo modulation | ||
| Spurious Emissions | <4 nW | ||
| RF Output Power | Switchable Low <10 mW, High <100 mW (country dependent) | ||
| Audio Input Jack | 2× Combination XLR & 6.3 mm (1/4″) TRS | ||
| Audio Output Jack | 2× 6.3 mm (1/4″) TRS | ||
| Earphone Output Jack | 6.3 mm (1/4″) stereo phone jack with volume control | ||
| Earphone Output Impedance | ≧16 Ω | ||
| Antenna Connector | TNC (50Ω impedance) | ||
| Power Supply | 12 – 15 V DC | ||
| Dimensions (W × H × D) | 210 × 44 × 206 mm / 8.3 ×1.7 × 8.1 “ | ||
| Weight | Approx. 1.1 kg / 2.4 lbs |

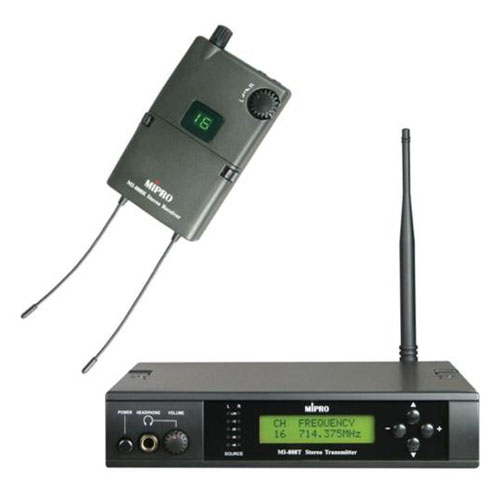

MI-808 is an IEM system designed for stage performance and broadcasting. Also, it can be served as a simultaneous language interpretation system. It is frequency-agile over a 24 MHz bandwidth with 16 selectable frequencies. Advanced dual-antenna true diversity technology eliminates signal dropouts and enhances signal stability. High S/N ratio and dynamic range ensures optimal audio quality.
