Features:
- The ACT-848 is an EIA standard 1U dual channel rack-mountable receiver with metal chassis.
- A full-color VFD (vacuum fluorescent display) provides clear viewing of all parameters. All controls are intuitive and easily accessible, allowing for quick and easy system setup via a single rotary control.
- Enhanced RF circuitry improves anti-interference characteristics and system compatibility with 64 MHz wide bandwidth allows more interference-free channels to be selected
- New digital diversity receiving technology eliminates signal dropout and enhances receiving range.
- Full-Range sound quality won’t be changed by the strength of RF signals or operation distance.
- Digitally-processed RF circuitry and DigitnamicPlus™ technology eliminates compander noise, assuring a wireless sound quality that easily rivals cable transmission.
- Improved proprietary Audio A/D Converter provides a true dynamic range of 115 dBA, T.H.D. < 0.03% at 1 kHz with < 2.7 ms latency
- AES3id Digital Audio Interface facilitates a direct connection to digital mixing consoles and transmits signal without distortion, ensuring a stable S/N ratio which will not deteriorate in long distance transmission.
- Proprietary 256-bit encryption, provides secure audio transmission, preventing unauthorized listening.
- 10 built-in SmartEQ™ presets and user-defined microphone capsule equalization allows faithful sound reproduction to suit artists’ preferences.
- 10 built-in digital anti-feedback SmartEQ™ presets minimize feedback effectively without sacrificing sound quality.
- Optional Standard AA battery transmitters or rechargeable lithium battery transmitters.
Specifications:
| Channel | Quad | ||
| Frequency Range | UHF 480 ~ 960 MHz (country dependent) | ||
| Bandwidth | 64 MHz | ||
| Sensitivity | 12 dBμV at S/N ≒ 118 dBA (digital output) | ||
| Spurious Rejection | > 85 dB | ||
| Audio Sampling | 24-bit / 44.1 kHz Rate | ||
| Frequency Response | 20 Hz ~ 20 kHz | ||
| Dynamic Range | > 115 dB (A) | ||
| Latency | 2.7 ms | ||
| Audio Interface | AES digital output, analog transmission | ||
| Monitor Output | Headphone monitor connector | ||
| Dante Interface | Optional | ||
| Power Supply | External adaptor | ||
| Dimensions | 420 (W) × 44 (H) × 245 (D) mm / 17 × 1.7 × 9.6 “ | ||
| Net Weight | Approx. 2.6 kg / 5.7 lbs | ||
| Antenna | Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. | ||
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
Click here to download Mipro ACT 848 specifications
TA 80 Digital Wireless Plug-on Transmitter
Features:

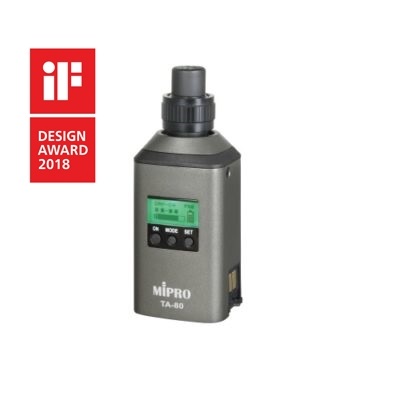

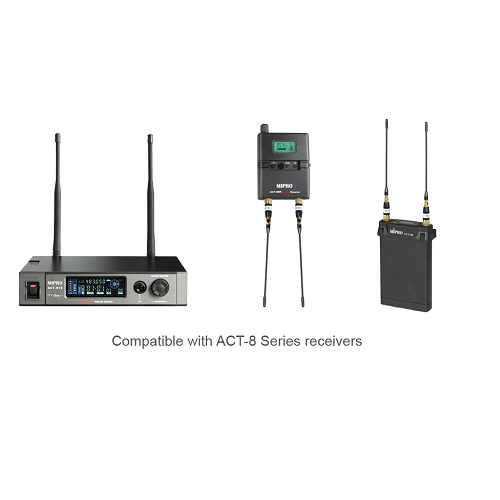

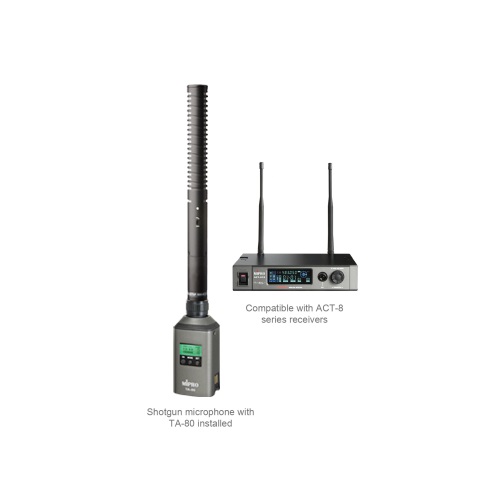

The MIPRO TA-80 is a digital miniature wireless plug-on transmitter with balanced XLR mic input jack, designed for professional interview applications. It allows condenser or dynamic wired microphones to become wireless and is compatible with ACT-8 series receivers for premium sound quality.
The TA-80 has a compact and ultra-thin rugged aluminum housing construction. The input jack is easy to install and remove, and can be screw-locked with the microphone. It provides phantom power of 12, 48 V switchable levels for condenser microphones with up to 10mA current load. When the transmitter is connected to dynamic microphones, the phantom power can be turned off. A backlit LCD panel shows all operational parameters.

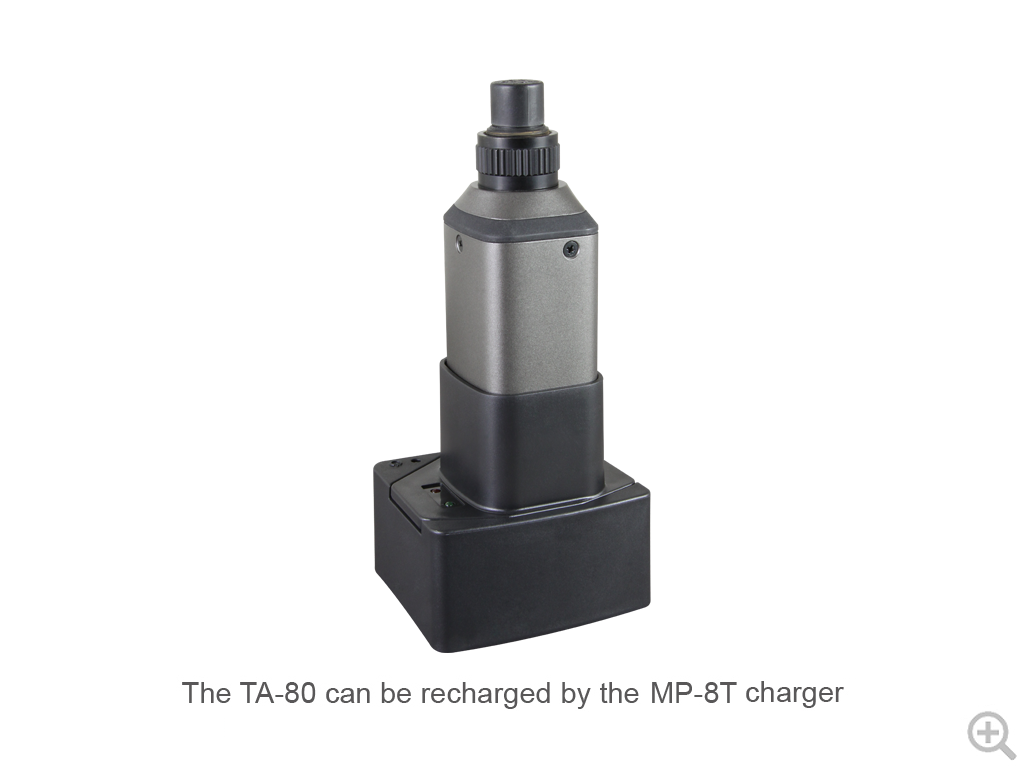

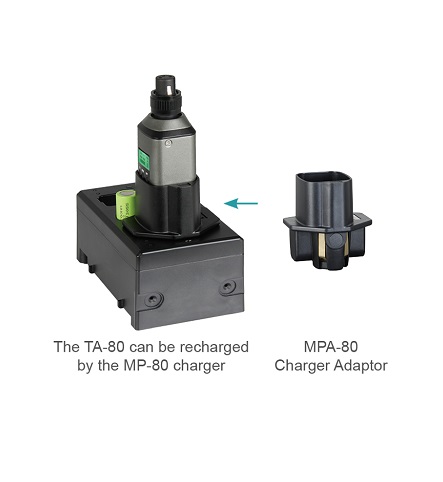

An ICR 18500 rechargeable lithium battery provides a minimum 8 hours of operation and can be recharged over 600 times. Even when set to 48V phantom power, it provides a minimum 5 hours of operation. Simply charge the transmitter in the charger after each use. It’s also easy to remove and replace the battery or charge the battery in the charger.
Specifications:
| Housing | Aluminum alloy | ||
| Frequency Range | UHF 470 – 934 MHz | ||
| Oscillation Mode | PLL Synthesized. | ||
| Frequency Stability | ≦±0.005% (-10℃ – +60℃) | ||
| RF Output Power | 10 mW / 50 mW switchable (country dependent) | ||
| Spurious Emissions | ≦ -60 dBc | ||
| Antenna | Internal | ||
| Modulation Type | New digital modulation | ||
| Audio Compression | DSP Inertial coding | ||
| LCD Display | Group, Channel, Frequency, AF gain, Low-cut, Limiter, Encryption status, RF power, Phase, Lock status, Mute mode, Battery status & Error codes | ||
| Gain Setting | +30 dB, +24 dB, +18 dB, +12 dB, +6 dB, 0 dB, -6 dB, -12 dB , -18 dB (9 settings). 0 dB = microphone sensitivity | ||
| Phantom Power | 12 V / 48 V switchable, with phantom power on indicator. 48 V provides up to 10 mA current load. Phantom power is not required for dynamic microphones. | ||
| Mic Input | Balanced XLR | ||
| Battery Type | ICR 18500 rechargeable lithium battery | ||
| Operating Time | Min. 8 hours (Low power, phantom power off) | ||
| Current Consumption | Approx. 140 mA (Low power, phantom power off) | ||
| Dimensions (W × H × D) | 44 × 114 × 37 mm / 1.7 × 4.5 × 1.5 “ | ||
| Net Weight | Approx. 165 g / 5.8 oz, excluding battery |
