Products

   ACT-848/ACT-800H or ACT-800T

• The ACT-848 is an EIA standard 1U dual channel rack-mountable receiver with metal chassis.
• A full-color VFD (vacuum fluorescent display) provides clear viewing of all parameters. All controls are intuitive and easily accessible, allowing for quick and easy system setup via a single rotary control.
• Enhanced RF circuitry improves anti-interference characteristics and system compatibility with 64 MHz wide bandwidth allows more interference-free channels to be selected
• New digital diversity receiving technology eliminates signal dropout and enhances receiving range.
• Full-Range sound quality won’t be changed by the strength of RF signals or operation distance.
• Digitally-processed RF circuitry and DigitnamicPlus™ technology eliminates compander noise, assuring a wireless sound quality that easily rivals cable transmission.
• Improved proprietary Audio A/D Converter provides a true dynamic range of 115 dBA, T.H.D. < 0.03% at 1 kHz with < 2.7 ms latency
• AES3id Digital Audio Interface facilitates a direct connection to digital mixing consoles and transmits signal without distortion, ensuring a stable S/N ratio which will not deteriorate in long distance transmission.
• Proprietary 256-bit encryption, provides secure audio transmission, preventing unauthorized listening.
• 10 built-in SmartEQ™ presets and user-defined microphone capsule equalization allows faithful sound reproduction to suit artists’ preferences.
• 10 built-in digital anti-feedback SmartEQ™ presets minimize feedback effectively without sacrificing sound quality.
• Optional Standard AA battery transmitters or rechargeable lithium battery transmitters.

Specifications:

Click here to download Mipro ACT 848 specifications

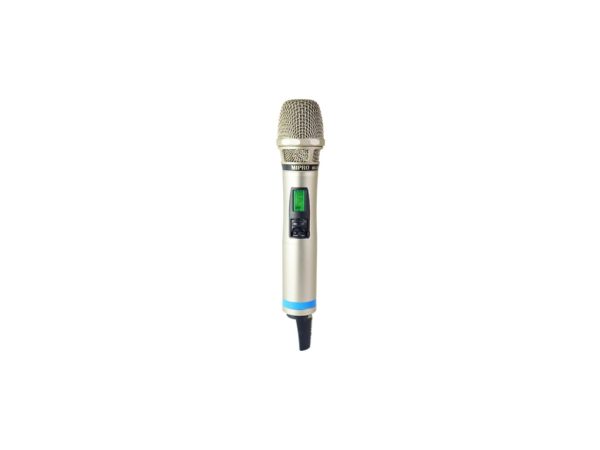

• Aesthetically designed in champagne gold color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
• The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
• The patented power switch module integrates the mute, set buttons, LCD and power switch lock hook for convenience to operate and prevents the power switch from accidental operation.
• In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output and mute mode are also programmable.
• 3 switchable gain levels with input sensitivity preset to equal the sensitivity of the microphone capsule at 0 dB.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
• A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
• Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.

• Newly designed compact and lightweight housing for easy wearing.
• The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information. A lockable power switch prevents the power switch from accidental operation.
• In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, input polarization, and mute mode are also programmable.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• 6 switchable gain levels and the input polarization can be selected for matching various capsules.
• Mute button and remote-control jack allow quick setting of MUTE function.
• The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
• A belt clip for easy wearing.
