MiPRO ACT-747 UHF Analog Wideband Quad Channel Receiver

RM21,600.00





Categories: , Tag:

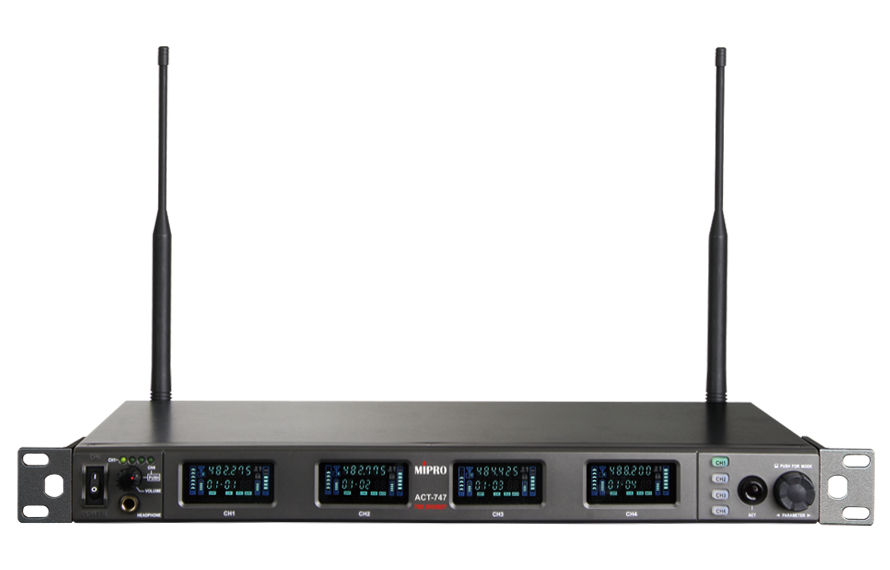

ACT-747 UHF Analog Wideband Quad-Channel Receiver

  • EIA standard metal chassis, with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons equipped on the front panel. The VFD screen will automatically turn bright to identify “Working” or “Standby” mode. An optional Dante network interface is available on the rear panel.
  • Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
  • Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
  • Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
  • Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
  • Optional Dante digital network interface for digital audio output.
  • RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
  • Pairs with ACT-700H handheld and ACT-700T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.

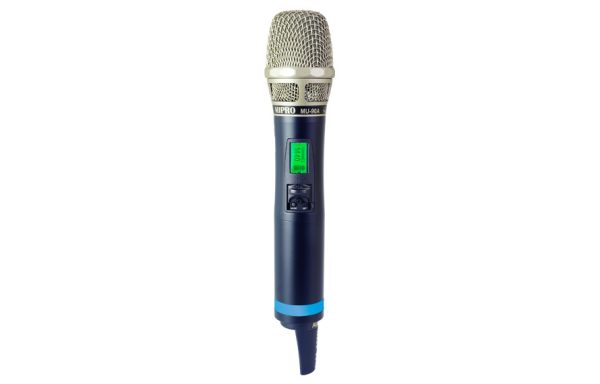

ACT-700H UHF Analog Wideband Handheld Wireless Microphone

  • Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
  • The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
  • The patented power switch module integrates mute, set buttons, LCD and power switch lock hook for convenience to operate and prevents the power switch from accidental operation.
  • In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output and mute mode are also programmable.
  • 5 switchable gain levels with input sensitivity preset to equal the sensitivity of the microphone capsule at 0 dB.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
  • A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
  • Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.

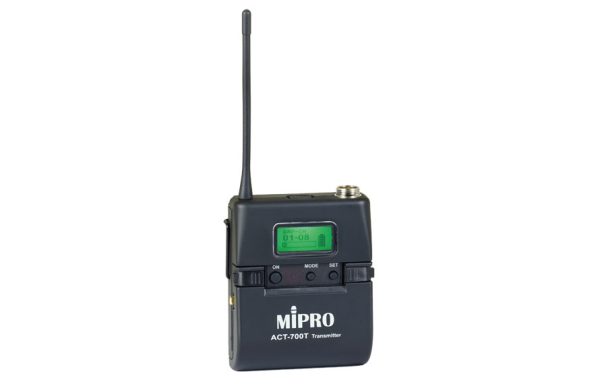

ACT-700T UHF Analog Wideband Bodypack Transmitter

Newly designed compact and lightweight housing for easy wearing.

  • The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation.
  • In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, and button lock modes are also programmable.
  • The world’s first ACT™ function provides precise and rapid frequency sync to the receiver
  • 5 switchable gain levels.
  • Mute button and remote-control jack allow quick setting of MUTE function.
  • The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. An optional slip-in charger (MP-800) is available.
  • A belt clip for easy wearing.
