JBL Pasion 12 Karaoke Speaker

RM4,499.00

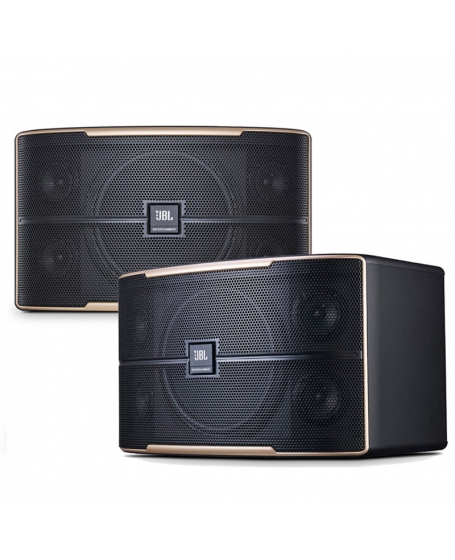

Pasion 12

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 12 is a passive 12” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 12 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 12 is perfect for a wide array of karaoke venues and applications. The Pasión 12 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features four 3” high-efficiency tweeters that provide crystal-clear highs and mids, while the specially-designed 12” woofer offers high-power handling, low distortion and minimum power compression.

In addition to unmatched audio performance, the Pasión 12 features a premium, sleek design. Adding to the stylish look and feel, the loudspeaker features an illuminated JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 12 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

KEY FEATURES

  • Passive 3-way, bass-reflex full-range karaoke loudspeaker
  • 12” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 250W and sensitivity of 91db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the JBL Entertainment logo
Category: Tag:

SPECIFICATIONS
SYSTEM TYPE: 12″, 3-way, bass-reflex
FREQUENCY RANGE (-10 dB)1: 47 Hz – 17 kHz
FREQUENCY RESPONSE (±3 dB)1: 60 Hz – 14 kHz
SENSITIVITY (1W@1M)1: 91 dB
NOMINAL IMPEDANCE: 8 Ohms
MAXIMUM SPL2: 115 dB (121 dB peak)
POWER RATING3: 250 W/500 W/1000 W
(CONTINUOUS/PROGRAM/PEAK)
COVERAGE PATTERN: 120° × 90° (H × V)
DIMENSIONS (H × W × D): 350 mm × 586 mm × 375 mm
13.8 inch × 23.1 inch × 14.8 inch
NET WEIGHT: 17.48 Kg (38.5 lbs)
LF DRIVER: 1 × 12″ Woofer
HF DRIVER: 4 × 3″ Tweeter

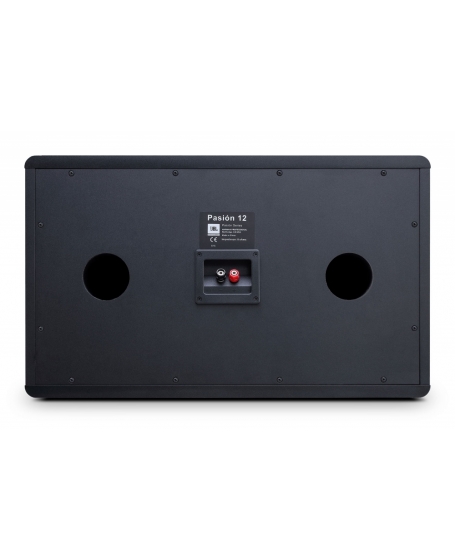

INPUT CONNECTORS: Binding Post
ENCLOSURE CONSTRUCTION: Vinyl covered MDF
