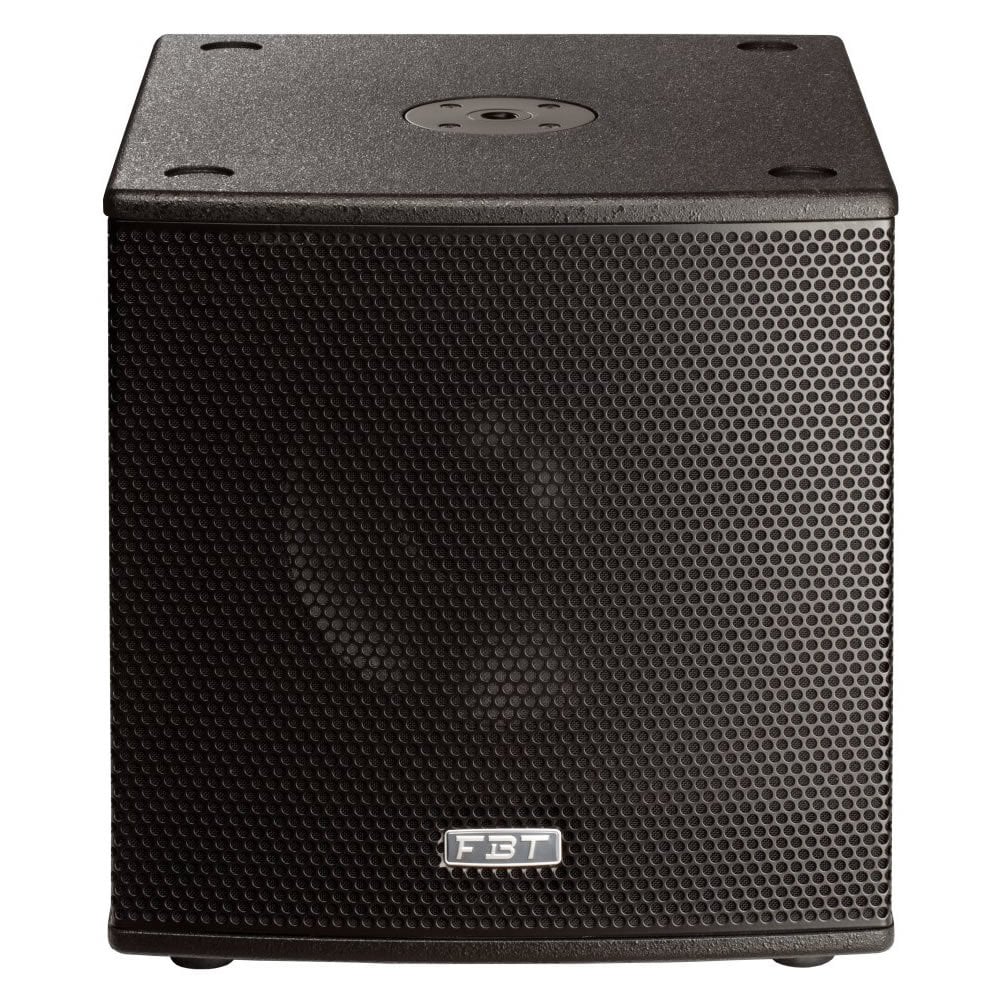

SUBLine 118SA Processed Active Subwoofer
Features:
- Bass-reflex design subwoofer
- 460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
- Frequency response from 33Hz – 100Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
- Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Specifications:
| Code: | 41221 |
| Configuration: | 1 way |
| Built-in amplifier LF/HF: | 1200 W RMS |
| Built-in amplifier peak LF/HF: | 2400 W |
| Frequency response: | 33Hz-100Hz -6dB |
| Low Frequency woofer: | 18 – 3 coil inch |
| Maximum SPL cont/peak: | 134/137 half-space dB |
| Dispersion: | omnidirectional HxV |
| Input impedance: | 22 Kohm |
| Crossover Frequency: | 100Hz KHz |
| AC Power requirements: | 800 VA |
| Input connector: | stereo XLR with loop |
| Power cord: | 7/16.4 m/ft |
| Net Dimension (WxHxD): | 555x572x666 / 21.8×22.5×26.2 mm/inch |
| Net Weight: | 44.5/98.1 kg/lb |
| Transport Dimension (WxHxD): | 800x642x800 / 31.5×25.3×31.5 mm/inch |
| Transport Weight: | 54.5/120.1 Kg/lb |
