NEW J SERIES
More technology for improved performance and quality value for money
The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
PRODUCT DESCRIPTION
Sound Reinforcement Monitor

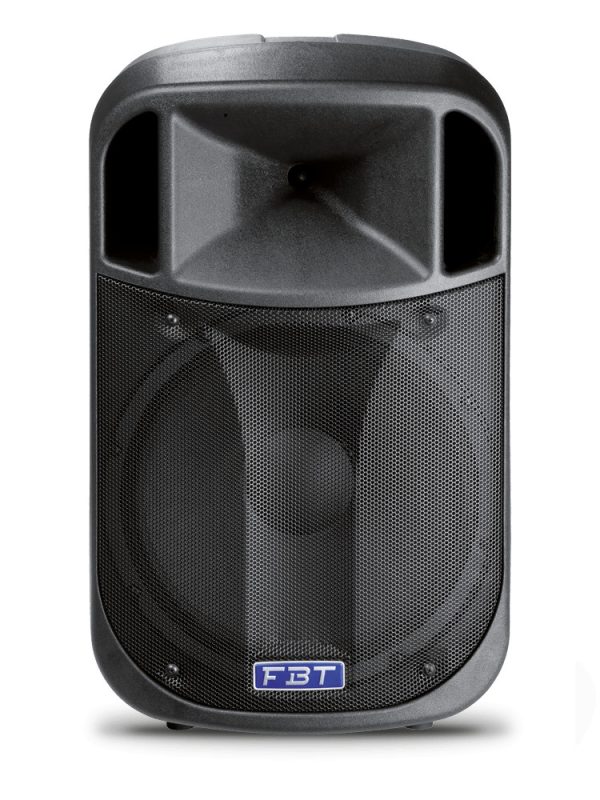

The FBT J8 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black or white finish the FBT J8 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.
With the use of optional accessories the FBT J8 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J8 is of two way design incorporating an 8″ low frequency woofer and 1″ HF custom compression driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 65Hz – 20kHz the FBT J8 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 121.5dB.
A front face steel grille protects the speaker from external damage.
Ideal for small fixed installations the FBT J8 speaker system have an impedance of 8 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J8 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J8 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.
The FBT J12 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT J12 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J12 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J12 is of two way design incorporating an 12″ low frequency woofer and 1″ HF custom driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2kHz. With a frequency range of 55Hz – 20kHz the FBT J12 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB. A front face steel grille protects the speaker from external damage.
Ideal for fixed installations the FBT J12 speaker system have an impedance of 8 Ohm. The two M10 fly points built into the cabinets along with the optional mounting brackets allow the FBT J12 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J12 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.
Available in black or white finish the FBT J15 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J15 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.The FBT J15 is of two way design incorporating an 15″ low frequency woofer and 1″ HF custom driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 1.8kHz. With a frequency range of 50Hz – 20kHz the FBT J15 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB.
A front face steel grille protects the speaker from external damage. Ideal for fixed installations the FBT J15 speaker system have an impedance of 8 Ohm.The two M10 fly points built into the cabinets along with the optional mounting brackets allow the FBT J15 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J15 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A & J 12A, 200 + 50W for the J 8A and 80 + 40W for the J 5A. These amplifiers have been designed ‘from the ground up’ in FBT’s R&D laboratories. The largest amplifier model that equips the J 15A and J 12A has a switch mode power supply as well as a digital signal processor with 4 pre-sets.
The J 8A and J 5A amplifiers have toroidal transformer power supplies. The J 8A has a digital signal processor with 2 pre-sets, whilst the J 5A has analog signal processing.
The speakers have been completely redesigned, introducing the technological developments of recent years to achieve a far superior efficiency and linearity.
Following from the new J series, FBT bring you the DJ 15A, designed with today’s modern DJ in mind. The DJ 15A has invaluable features allowing quality audio playback using our revolutionary DSP technology. This includes 4 presets enabling the DJ to change the sound of their music to suit the environment they play within.
These DSP presets will allow the DJs audience to enjoy improved sound quality and SPL, especially in bass reproduction at high volume.
The DJ 15A also has another useful feature for DJs, including a two channel input mixer allowing the DJ to plug a music source and microphone direct into the speaker, giving separate control over volume for both devices. You can also daisy chain these speaker together if required. Ideal for many application of today’s modern DJ.
