Features:

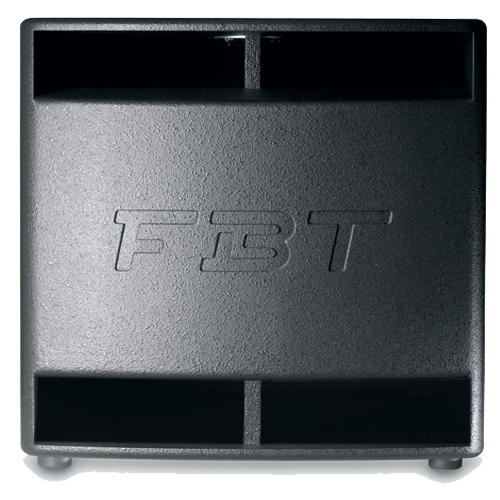

- Self-powered bandpass subwoofer
- 18” (460 mm) custom neodymium B&C woofer with a 3” (75 mm) voice coil
- Built-in 900Wrms PWM amplifier
- Switch mode power supply
- Analogue signal processor with limiter
- Control panel with:
- XLR/input and XLR stereo outputs with Hi-Pass, filter for connecting the satellites
- Volume
- Ground-Lift
- 0°-180° phase inverter switch
- Limiter LED
- Box in 18 mm (0.7”) birch plywood
- The special “bandpass” acoustic loading increases efficiency and maximum SPL
- Eight M10 mounting points, stand socket and two integrated wooden handles.
- Optional 4 swivel-mount casters 80 mm ø (3.15”) on request.
Specifications:
| Code: | 29797 |
| Configuration: | Band-Pass way |
| Built-in amplifier LF/HF: | 1200 W RMS |
| Built-in amplifier peak LF/HF: | 2400 W |
| Frequency response: | 38 – 120Hz -6dB |
| Low Frequency woofer: | 1×18 – 3 coil inch |
| Maximum SPL cont/peak: | 135/139 dB |
| Dispersion: | omnidirectional HxV |
| Input impedance: | 22 Kohm |
| Crossover Frequency: | active 120 KHz |
| Input connector: | Stereo XLR wih loop |
| Power cord: | 5 / 16.4 m/ft |
| Net Dimension (WxHxD): | 530x605x655 – 21×23.8×25.8 mm/inch |
| Net Weight: | 43 / 94.8 kg/lb |
| Transport Dimension (WxHxD): | 660x735x785 – 26x29x31 mm/inch |
| Transport Weight: | 47 / 103.6 Kg/lb |
