EB-735FI
Interactive display

Create an impact in any workspace with a large, scalable, interactive display that connects people in or out of the workplace

Key Features

• Any room, any size: Bright, large-format display options up to 110″ 16:6
• Send productivity soaring: Easy-to-use interface, optional responsive touch and fast set up
• Freedom of connectivity: Expand connectivity through BYOD devices, VC cameras and more
• Exceptional reliability: Maintenance-free laser technology for fit-and-forget peace of mind

Tech Specs

Projection System
3LCD Technology, RGB liquid crystal shutter

LCD Panel
0.61 inch with C2 Fine

Color Light Output
3,600 Lumen- 2,500 Lumen (economy) In accordance with ISO 21118:2013

White Light Output
3,600 Lumen – 2,500 Lumen (economy) In accordance with ISO 21118:2013

Resolution
Full HD 1080p, 1920 x 1080, 16:9

High Definition
Full HD

Aspect Ratio
16:9

Contrast Ratio
2,500,000 : 1

Light source
Laser

Laser Light source
20,000 hours Durability High, 30,000 hours Durability Eco

Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °

Colour Video Processing
10 Bits

2D Vertical Refresh Rate
192 Hz – 240 Hz

Colour Reproduction
Upto 1.07 billion colours

Throw Ratio
0.26 – 0.36:1

Zoom
Digital, Factor: 1 – 1.35

Lens
Optical

Screen Size
65 inches – 100 inches

Projection Lens F Number
1.6

Projection Lens Focal Length
3.7 mm

Projection Lens Focus
Manual

Offset
5 : 1

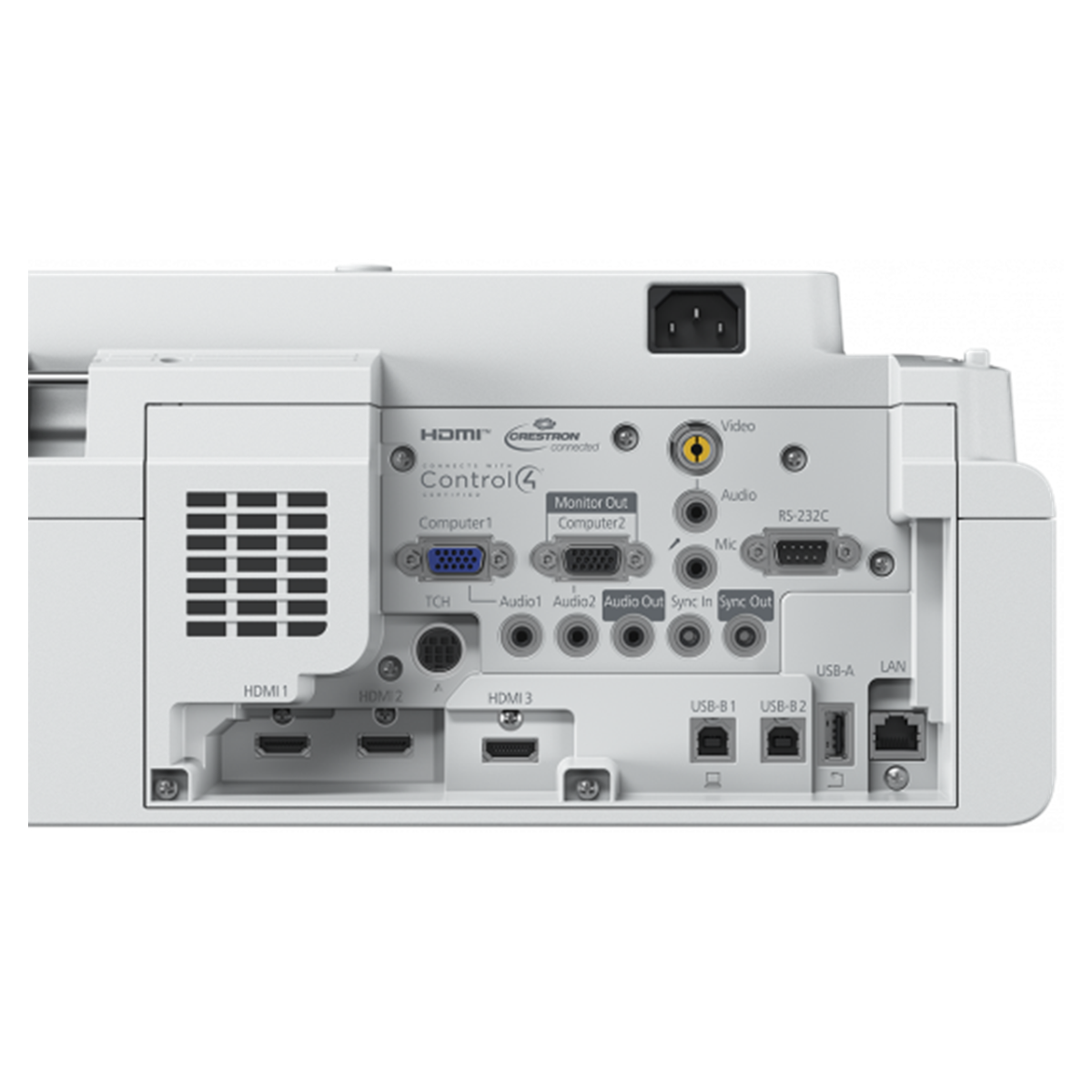

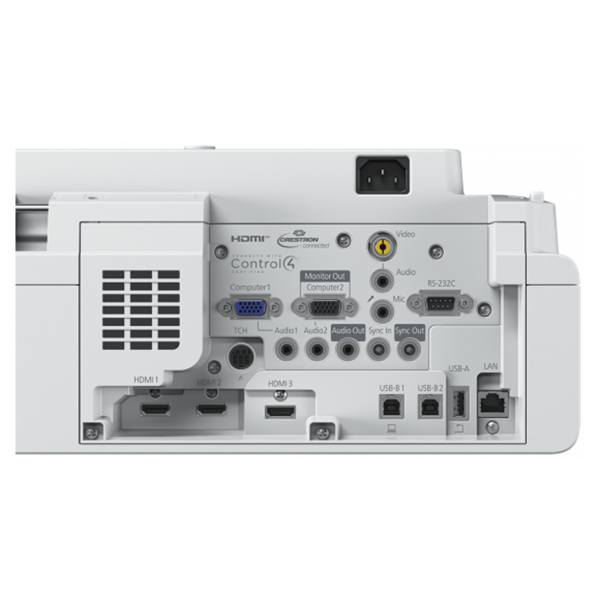

Interfaces
USB 2.0 Type A (2x), USB 2.0 Type B (2x), RS-232C, Wired Network, Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Miracast, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Finger-touch interface (optional), Sync. in, Sync. out, Multi-Touch interface (optional)

Epson iProjection App
Ad-Hoc / Infrastructure

Network Protocol
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Interactivity
Yes – pen and finger-touch

Video Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Power consumption
255 Watt, 197 Watt (economy), 0.5 Watt (standby)

Supply Voltage
AC 220 V – 240 V, 50 Hz – 60 Hz

Product dimensions
356‎ x 395 x 133 mm (Width x Depth x Height)

Product weight
5.8 kg

Noise Level
Normal: 36 dB (A) – Economy: 26 dB (A)

Supported Temperature
Storage -10° C – 60° C

Included Software
Easy Interactive Tools, iProjection

Loudspeaker
16 Watt

What’s in the box
2 x Pen tip(Teflon), 4 x Pen tip(Felt), Interactive pens, Pen Holder/Stand, Power cable, Quick Start Guide, Remote control incl. batteries, Removable battery x2, Replacement pen tips, USB cable

Room Type / Application
Boardroom, Meeting room / Classroom

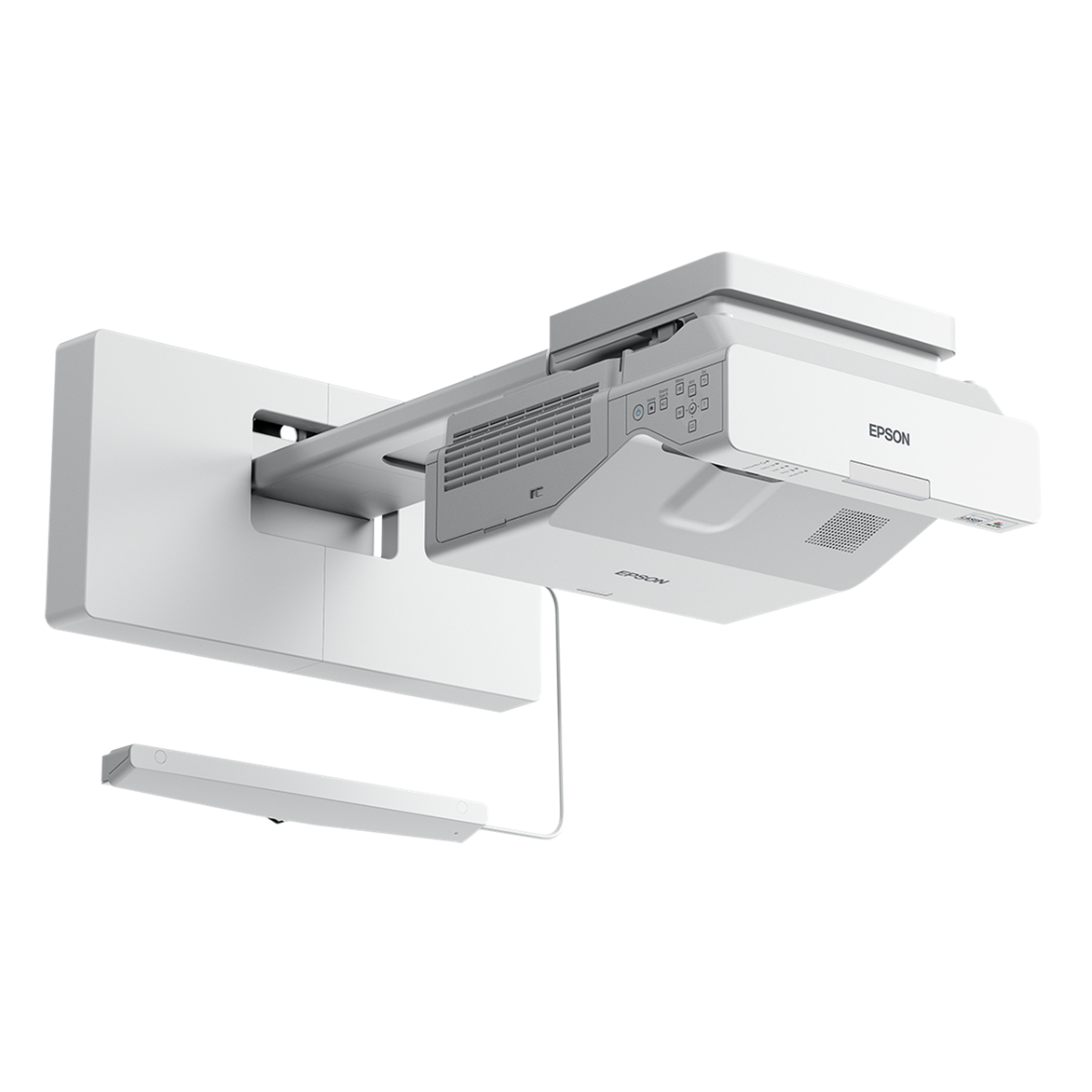

Positioning
Ceiling Mounted, Table Mounted, Wall Mounted

Colour
White

TCO Certified
Yes
