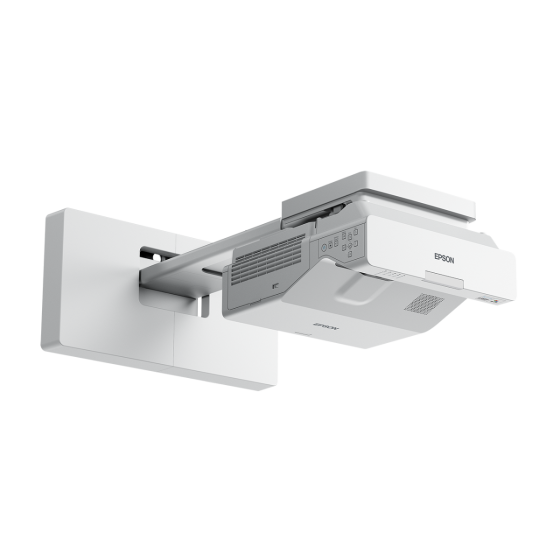

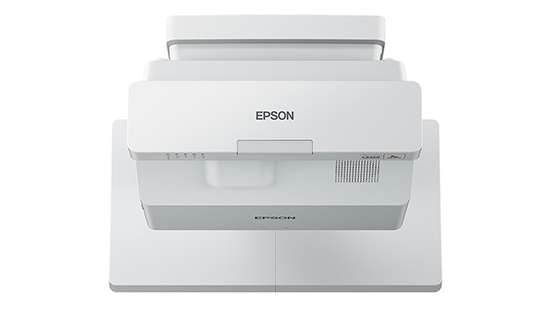

EB-725W
Agile laser display

Drive agile team collaboration with an affordable, large screen display solution that will enhance productivity and connectivity.

Key Features

• Any room, any size: Bright, large-format display options up to 120″
• Every-angle viewing: No restricted angles, shadows, glare or blind spots
• Multiple collaboration options: Expand connectivity through BYOD devices, VC cameras and more
• Document camera compatibility: Create a totally immersive experience with sound and visuals
• Exceptional reliability: Maintenance-free laser technology for fit-and-forget peace of mind

Tech Specs

Projection System
3LCD Technology, RGB liquid crystal shutter

LCD Panel
0.59 inch with C2 Fine

Color Light Output
4,000 Lumen- 2,800 Lumen (economy) In accordance with ISO 21118:2013

White Light Output
4,000 Lumen – 2,800 Lumen (economy) In accordance with ISO 21118:2013

Resolution
WXGA, 1280 x 800, 16:10

High Definition
HD ready

Aspect Ratio
16:10

Contrast Ratio
2,500,000 : 1

Light source
Laser

Laser Light source
20,000 hours Durability High, 30,000 hours Durability Eco

Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °

Colour Video Processing
10 Bits

2D Vertical Refresh Rate
100 Hz – 120 Hz

Colour Reproduction
Upto 1.07 billion colours

Throw Ratio
0.28 – 0.37:1

Zoom
Digital, Factor: 1 – 1.35

Lens
Optical

Screen Size
65 inches – 120 inches

Projection Lens F Number
1.6

Projection Lens Focal Length
3.7 mm

Projection Lens Focus
Manual

Offset
6 : 1

Interfaces
USB 2.0 Type A (2x), USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Miracast, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input

Interactivity
No

Video Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Power consumption
255 Watt, 197 Watt (economy), 0.5 Watt (standby)

Supply Voltage
AC 220 V – 240 V, 50 Hz – 60 Hz

Product dimensions
356‎ x 395 x 133 mm (Width x Depth x Height)

Product weight
5.7 kg

Noise Level
Normal: 36 dB (A) – Economy: 26 dB (A)

Supported Temperature
Storage -10° C – 60° C

Included Software
iProjection

Loudspeaker
16 Watt

What’s in the box
Power cable, Quick Start Guide, Remote control incl. batteries, Removable battery x2

Room Type / Application
Boardroom, Meeting room / Classroom

Positioning
Ceiling Mounted, Table Mounted, Wall Mounted

Colour
White
