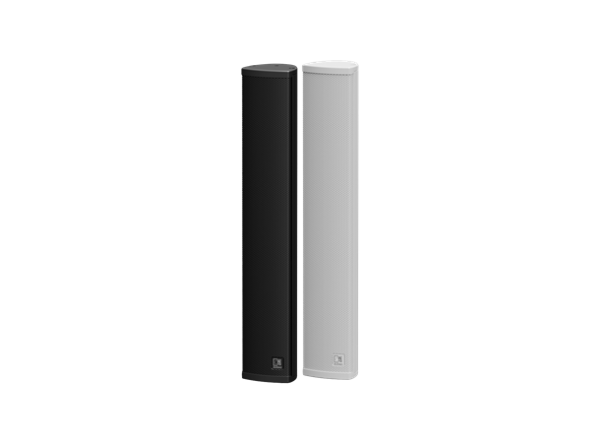

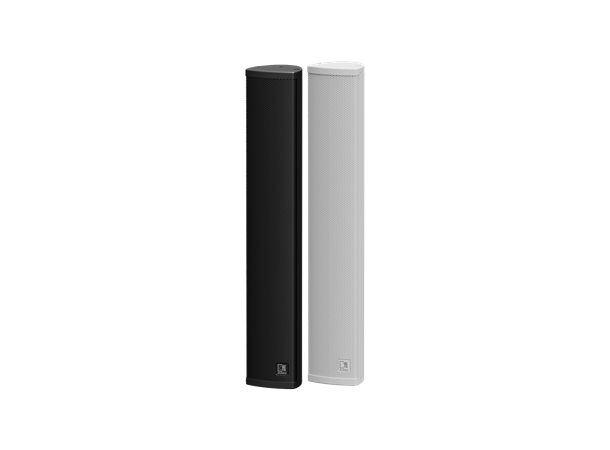

LINO10
Column speaker 10 x 2″
- 10 mm distance to wall
- Slimline aluminum design
- 10 x 2″ high-quality broadband speakers
- Multi-tapping 70V / 100V line transformer
- Finely perforated front grill
- Multi-functional L-shaped wall bracket
- 2° vertical incline angle
The LINO10 column speaker consists of 10 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 40 Watt, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 40W, 20W and 10W (5 W for 70V use only). It offers solutions for uniform acoustic performance in any type of system in reverberant venues, while reducing echo and microphone feedback to optimizes the intelligibility of music & speech.
Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. The distance from the speaker to the wall is 10mm, while it can be vertically inclined 2°. Connections are made through multi-tapping terminal block connector and A multi-tapping line transformer allows them to be connected to 70/100V public address systems with various power tapping settings, while connections in low impedance systems are also possible.
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB – 1/3 oct) , which are critical for the speech intelligibility in the main application field of these loudspeakers.
Advanced mounting possibilities
The L-shaped mounting brackets on the top and bottom of the LINO series ensure optimal flexibility for fixation and directional placement. The loudspeaker can be tilted in vertical direction and rotated in horizontal direction, creating an optimal sound dispersion.
Crystal clear sound production
The acoustical composition of the LINO series is developed to reproduce an extremely detailed sound. Due to its two way design, that consists of 4 or 10 x 2″ low/mid frequency drivers and a 1″ central positioned tweeter for high frequencies, the loudspeaker will leave its listeners stunning within his range.
Sleek aluminum design
With the use of solid aluminum materials and a rigid and finely perforated front grill combined with a width of just 72mm, this column speaker proves to be an elegant solution in acoustic difficult environments.
Technical specifications
| LINO10/B | Black version |
| LINO10/W | White version |
| RMS/AES power handling | 40 W | |
| Peak power handling | 160 W | |
| Program power handling | 80 W | |
| Impedance | 20 Ω | |
| Sensitivity (1W/1m) | 90 dB | |
| Sound Pressure (Max. W/1m) | 107 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Response (± 3 dB) | 170 Hz – 15 kHz | |
| Line Transformer Tappings | 1 | 125 Ω – 100 V / Not used – 70 V / 40 W |
| 2 | 250 Ω – 100 V / 40 W – 70 V / 20 W | |
| 3 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 4 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| Drivers | 10 x 2” | |
| HF | 1” | |
| Connectors | 6-pin Euro Terminal Block | |
| Temperature | Operating | -20 – 50 °C |
| Dispersion | Horizontal | 160° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 15° (-6 dB avg 1 kHz – 4 kHz) | |
| Ingress Protection rating | IP3x | |
| Colours | Black & White | |
| Construction | Aluminum | |
| Front finish | Aluminium grill | |
| Dimensions | 72 x 796 x 68.3 mm (W x H x D) | |
| Weight | 3.7 kg | |
| Accessories | Included | 1 x 6-pin Euro Terminal Block Input connectors |
| Mounting bracket | ||
